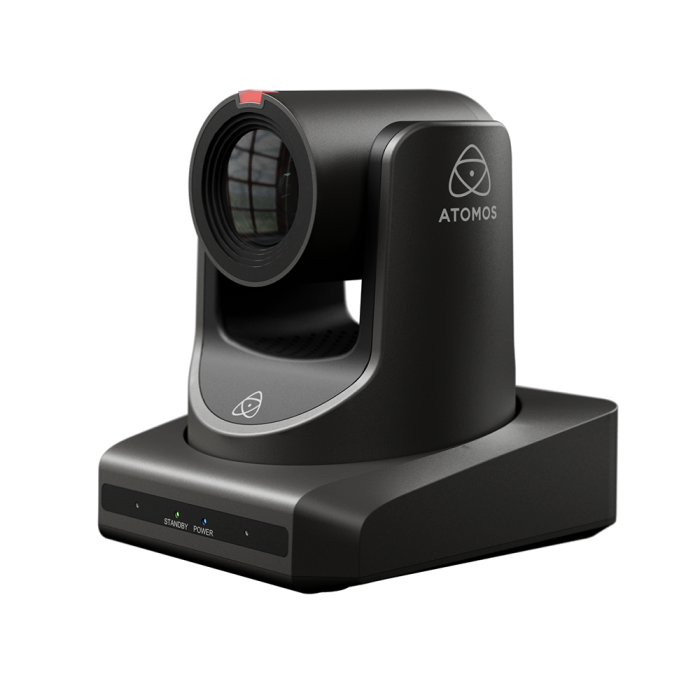

Atomos A-Eye 4K-20X - PTZ Camera
$2,299.00
In stock
SKU
NIN1077
- 1/1.8-inch high-quality UHD CMOS sensor
- Maximum of 8.42 million pixels up to UHD 4K60
- Includes NDI|HX3 license
- 20x optical zoom, 16 times digital zoom
- HDMI, 3G-SDI, USB 2.0 & IP output
- Maximum of 8.42 million pixels up to UHD 4K60
- Includes NDI|HX3 license
- 20x optical zoom, 16 times digital zoom
- HDMI, 3G-SDI, USB 2.0 & IP output
A-Eye is a powerful new range of AI-enhanced PTZ cameras that combine intelligent tracking, high-quality video, and seamless connectivity. Designed for educators, content creators, business professionals, worship leaders, and live event teams, the A-Eye series makes multi-camera production simple, scalable, and professional—no camera operator required.
With real-time AI-powered tracking and advanced PTZ motion (±170° pan and -30° to +90° tilt range), A-Eye cameras follow your subject with fluid, precise movement—perfectly framing every step, whether you’re streaming a live concert, teaching a class, or presenting to a global audience.
Features:
With real-time AI-powered tracking and advanced PTZ motion (±170° pan and -30° to +90° tilt range), A-Eye cameras follow your subject with fluid, precise movement—perfectly framing every step, whether you’re streaming a live concert, teaching a class, or presenting to a global audience.
Features:
- 1/1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels up to UHD 4K60
- Includes NDI|HX3 license
- 20x optical zoom, 16 times digital zoom
- HDMI, 3G-SDI, USB 2.0 & IP output
- 3.5mm stereo audio in/out,RS-232 in/out
- USB port for recording with HHD
- UVC/RS-485 & IP VISCA control
- Supports H.265/H.264/MJPEG compression
- DC & PoE+ support, tally lights
- AI tracking
| Manufacturer | Atomos |
|---|---|
| manufacturer_part_no | ATOMAE4K20 |
| Klevu Image | /n/i/nin1075b_2.png |
| tab_box | Below are the items included with this product
|
| tab_specs_dims | Physical Dimensions (W x H x D mm) 146mm x 169mm x 168mm
Weight About 1.6Kg
Environmental Ambient operating temperature Up to 40 degrees Celsius
Construction Body ABS
Power Input voltage DC 12V/PoE+ (802.3at)
Operating power Max 18W
Power on indicator Yes
Video Sensor 1/1.8 inch, CMOS
Effective pixels 8.42M
Lens
20x, f=6.25mm~125mm, F1.58~F3.95
Scanning mode Progressive
Resolutions supported
HDMI: 4KP60, 4KP50, 4KP30, 4KP25, 4KP59.94, 4KP29.97, 1080P60, 1080P50, 1080P59.94, 1080P30, 1080P29.97, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25, 1080I60, 1080I50, 1080I59.94, 720P60, 720P59.94
Color system / compression YUY2/H.264/MJPEG/H.265
Video format YUY2: max to 1080P@5fps H.264; AVC: max to 2160P@30fps; H.265 HEVC: max to 2160P@30fps; MJPEG: max to 2160P@30fps
Digital zoom 16x
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Image flip Supported
Image freeze Supported
White balance Auto, VAR, Manual, One Push, Indoor, Outdoor
Backlight compensation Support
Digital noise reduction 2D & 3D Digital Noise Reduction
SNR ≥55dB
Mechanical Horizontal FOV 60°~3.5°
Vertical FOV 35.7°~2.0°
Pan angle ±170°
Tilt angle -30° ~ +90°
Pan speed 1.7° ~ 100°/s
Tilt speed 1.7° ~ 69.9°/s
Preset position 255
Preset accuracy 0.1°
USB Operating system Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS
USB audio Supported
USB video protocol UVC 1.1/UVC 1.5
USB PTZ control Supported
Network Video compression H.264/H.265/MJPEG
Video stream First Stream, Second Stream
First stream resolution 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360
Second stream resolution 720x480, 720x408, 640x480, 640x360, 480x320, 320x240
Video bit rate First Stream: 32kbps~51200kbps; Second Stream: 32kbps~20480kbps
Bit rate control CBR, VBR
Frame rate 50Hz: 1fps ~ 50fps; 60Hz: 1fps ~ 60fps
Audio compression AAC
Audio bit rate 96Kbps, 128Kbps, 256Kbps
Protocols NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast
Audio Microphone No built-in mic
Audio input Line In
Audio output Line Out, HDMI, USB
Input/Output Interfaces Line In 3.5mm audio interface
Line Out 3.5mm audio interface
RS-485 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P
RS-232 IN 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P
RS-232 OUT 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only
Network 10M/100M Adaptive Ethernet Port
USB USB 2.0: Type A
SDI 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard
HDMI HDMI version 1.3
Power jack JEITA type (DC IN 12V)
Tally indicator Yes
Warranty Standard 1 year. Extended to 2 years on product registration. |
| Preorder_Shiptime | New Item - Coming Soon |
| Used Equipment Rating | Excellent |
