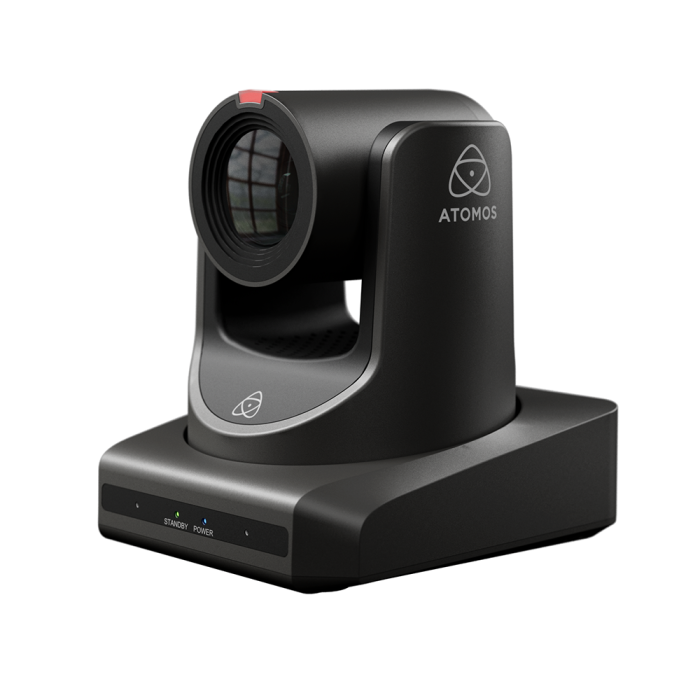

Atomos A-Eye HD-20X - PTZ Camera
$1,399.00
In stock
SKU
NIN1075
- 1/2.8-inch HD CMOS sensor
- 20x optical zoom
- 2.07M effective pixels
- AI-powered tracking
- ±170° pan and -30° to +90° tilt range
- 20x optical zoom
- 2.07M effective pixels
- AI-powered tracking
- ±170° pan and -30° to +90° tilt range
A-Eye is a powerful new range of AI-enhanced PTZ cameras that combine intelligent tracking, high-quality video, and seamless connectivity. Designed for educators, content creators, business professionals, worship leaders, and live event teams, the A-Eye series makes multi-camera production simple, scalable, and professional—no camera operator required.
With real-time AI-powered tracking and advanced PTZ motion (±170° pan and -30° to +90° tilt range), A-Eye cameras follow your subject with fluid, precise movement—perfectly framing every step, whether you’re streaming a live concert, teaching a class, or presenting to a global audience.
Features:
With real-time AI-powered tracking and advanced PTZ motion (±170° pan and -30° to +90° tilt range), A-Eye cameras follow your subject with fluid, precise movement—perfectly framing every step, whether you’re streaming a live concert, teaching a class, or presenting to a global audience.
Features:
- 1/2.8 inch, CMOS sensor, effective pixels: 2.07M up to HD 2K60
- Includes NDI|HX3 license
- 20x Optical Zoom ,16X digital zoom
- HDMI, 3G-SDI, USB 3.0 & IP output
- 3.5mm stereo audio in/out,RS-232 in/out, supports built in mic
- USB 3.0 does NOT support recording
- UVC/RS-485 & IP VISCA control
- Supports H.265/H.264/MJPEG compression
- DC & PoE+ support, tally lights
- AI tracking
| Manufacturer | Atomos |
|---|---|
| manufacturer_part_no | ATOMAEHD20 |
| Klevu Image | /n/i/nin1075b.png |
| tab_box | Below are the items included with this product
|
| tab_specs_dims | Physical Dimensions (W x H x D mm) 139.2mm x 176.5mm x 165.8mm
Weight About 1.5Kg
Environmental Ambient operating temperature Up to 40 degrees Celsius
Construction Body ABS
Power Input voltage DC 12V/PoE+ (802.3at)
Operating power Max 15W
Power on indicator Yes
Video Sensor 1/2.8 inch, CMOS
Effective pixels 2.07M
Lens 20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
Scanning mode Progressive
Resolutions supported 1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50
Color system / compression YUY2/MJPEG/H.264
Video format YUY2: max to 1080P@5fps, H.264 AVC: max to 1080P@30fps
Digital zoom 16x
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Image flip Supported
Image freeze Supported
White balance Auto, VAR, Manual, One Push, Indoor, Outdoor
Backlight compensation Support
Digital noise reduction 2D & 3D Digital Noise Reduction
SNR ≥55dB
Mechanical Horizontal FOV 60.7° ~ 3.36°
Vertical FOV 34.1° ~ 1.89°
Pan angle ±170°
Tilt angle -30° ~ +90°
Pan speed 1.7° ~ 100°/s
Tilt speed 1.7° ~ 69.9°/s
Preset position 255
Preset accuracy 0.1°
USB Operating system Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS
USB audio Supported
USB video protocol UVC 1.1/UVC 1.5
USB PTZ control Supported
Network Video compression H.264/H.265
Video stream First Stream, Second Stream
First stream resolution 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360
Second stream resolution 1280x720, 1024x576, 720x480, 640x360, 480x272, 320x240, 320x180
Video bit rate 32Kbps ~ 20480Kbps
Bit rate control CBR, VBR
Frame rate 1fps ~ 60fps
Audio compression AAC
Audio bit rate 96Kbps, 128Kbps, 256Kbps
Protocols NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast
Audio Microphone Built-in dual microphone, 100Hz to 16KHz frequency response
Audio input Line In
Audio output Line Out, HDMI, USB
Input/Output Interfaces Line In 3.5mm audio interface
Line Out 3.5mm audio interface
RS-485 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P
RS-232 IN 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P
RS-232 OUT 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only
Network 10M/100M Adaptive Ethernet Port
USB USB 2.0: Type A
SDI 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard
HDMI HDMI version 1.3
Power jack JEITA type (DC IN 12V)
Tally indicator Yes
Warranty Standard 1 year. Extended to 2 years on product registration. |
