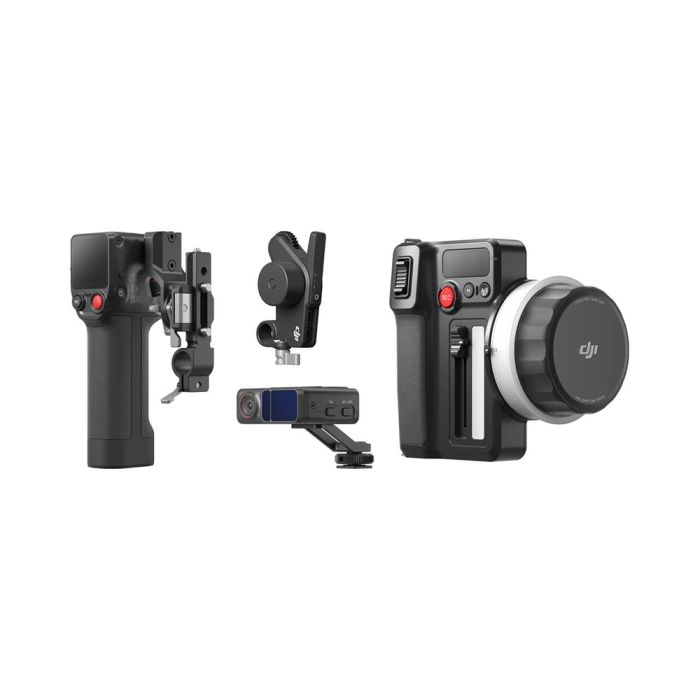

DJI Focus Pro Creator Combo
$999.00
In stock
SKU
HLI1399
- 20-Meter Subject Focusing, 76,800 Ranging Points
- Built-in Camera, Enhanced AI Recognition Algorithms
- AMF Mode, Human-Machine Collaborative Focus Control
- FIZ Lens Control, Magnetic Damping Tactile Feedback
- LiDAR Waveform, Top-Down Focus Assistance View
- Built-in Camera, Enhanced AI Recognition Algorithms
- AMF Mode, Human-Machine Collaborative Focus Control
- FIZ Lens Control, Magnetic Damping Tactile Feedback
- LiDAR Waveform, Top-Down Focus Assistance View
Feel the Focus
DJI Focus Pro, DJI's first independent Automated Manual Focus (AMF) lens control system, provides cinematographers with a robust and comprehensive focus solution, ushering in a new era of human-machine collaborative focus control.
20-Meter Subject Focusing, 76,800 Ranging Points
LiDAR human-subject focus distance is approx. 3 times that of the previous generation. The upgraded LiDAR boasts 76,800 ranging points, sharpening human-subject edge detection.
Built-in Camera, Enhanced AI Recognition Algorithms
More reliable recognition of human subjects and vehicles can be achieved. Even if the subject is momentarily obscured, the LiDAR can quickly regain focus.
AMF Mode, Human-Machine Collaborative Focus Control
In AMF mode, cinematographers can both visually observe the focus status on the monitor and intuitively perceive the autofocus logic through tactile feedback.
FIZ Lens Control, Magnetic Damping Tactile Feedback
The Focus Pro Hand Unit features real-time, stepless damping adjustment, and the Focus Pro Motor supports one-button linking with the Hand Unit. This allows focus pullers to effortlessly control lens FIZ.
LiDAR Waveform, Top-Down Focus Assistance View
Cinematographers can access the LiDAR Waveform focus assistance through the High-Bright Remote Monitor. In addition, LiDAR Waveform offers supplementary information.
Compatibility With DJI PRO Ecosystem
DJI Focus Pro can work with Ronin stabilizers, DJI Transmission, Ronin 4D, Inspire 3, and more. This provides a robust AMF focusing solution for expanded scenarios.
DJI Focus Pro, DJI's first independent Automated Manual Focus (AMF) lens control system, provides cinematographers with a robust and comprehensive focus solution, ushering in a new era of human-machine collaborative focus control.
20-Meter Subject Focusing, 76,800 Ranging Points
LiDAR human-subject focus distance is approx. 3 times that of the previous generation. The upgraded LiDAR boasts 76,800 ranging points, sharpening human-subject edge detection.
Built-in Camera, Enhanced AI Recognition Algorithms
More reliable recognition of human subjects and vehicles can be achieved. Even if the subject is momentarily obscured, the LiDAR can quickly regain focus.
AMF Mode, Human-Machine Collaborative Focus Control
In AMF mode, cinematographers can both visually observe the focus status on the monitor and intuitively perceive the autofocus logic through tactile feedback.
FIZ Lens Control, Magnetic Damping Tactile Feedback
The Focus Pro Hand Unit features real-time, stepless damping adjustment, and the Focus Pro Motor supports one-button linking with the Hand Unit. This allows focus pullers to effortlessly control lens FIZ.
LiDAR Waveform, Top-Down Focus Assistance View
Cinematographers can access the LiDAR Waveform focus assistance through the High-Bright Remote Monitor. In addition, LiDAR Waveform offers supplementary information.
Compatibility With DJI PRO Ecosystem
DJI Focus Pro can work with Ronin stabilizers, DJI Transmission, Ronin 4D, Inspire 3, and more. This provides a robust AMF focusing solution for expanded scenarios.
| Manufacturer | DJI |
|---|---|
| manufacturer_part_no | 284565 |
| tab_box | Below are the items included with this product
|
| tab_specs_dims | LiDAR Accessory Port Cold Shoe
1/4"-20 Threaded Hole USB-C Firmware Update Port (Power/USB) USB-C Data Port (Power/CVBS/CAN) Image Sensor Resolution: 1920×1440
FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal) Frame Rate: 30fps Equivalent Focal Length: 30 mm ToF Sensor Ranging Points: 76,800
Sensing Range: 0.5-20 m FOV: Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal) Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal) Frame Rate: 30fps Equivalent Focal Length: 30 mm (wide-angle mode) Ranging Accuracy: ±1% to 3% (affected by the distance) Machine Learning Tracking Subject: Can recognize up to five subjects at the same time, and choose one to follow
Smart Object Identification: Human, vehicle Focus Area: Flex Spot (activate focus lock by framing the subject and pressing the trigger; supports autofocus only, not ActiveTrack); Wide (when subject-locked on human, supports both autofocus and ActiveTrack*; when subject-locked on vehicle, supports autofocus only, not ActiveTrack) * ActiveTrack is available only when used in conjunction with DJI RS 4 Pro or DJI RS 3 Pro. Electrical Properties Power Consumption: Average approx. 6.3 W, max 6.8 W
Input Voltage: 6.6-17.2 V Operating Temperature -20° to 45° C (-4° to 113° F)
Mechanical Properties Main Body Dimensions: Approx. 68×25×57 mm (L×W×H)
Weight: Approx. 140 g (0.31 lbs) Mounting Method and Position Can be mounted directly via cold shoe or using the 1/4" threaded hole
It is recommended to mount the DJI Focus Pro LiDAR close to the camera's optical axis. Grip Operating Frequency 2.400-2.4835 GHz
Bluetooth Transmitter Power < 8 dBm
Mechanical Properties Main Body Dimensions: Approx. 59×73×162 mm (L×W×H)
Main Body Weight: Approx. 482 g (1.06 lbs) Mounting Method Flexible mounting on either left or right side of the cage via NATO port
Screen 1.8-inch full-color touchscreen
Port USB-C Port (DJI Focus Pro LiDAR)
USB-C Port (DJI Focus Pro Motor) USB-C Port (Camera Control Port) USB-C Port (Battery Charging Port) Operating Time Approx. 2.5 hours
Measured in a 25° C (77° F) environment while simultaneously powering the grip screen, LiDAR, and a focus motor, with AF continuously on, and paired with a manual lens. Charging Power Supports 18W PD fast charging
Battery Model BHX711-3000-7.2V
Power Supply Voltage 6.6-8.4 V
Operating Temperature -20° to 45° C (-4° to 113° F)
Hand Unit Operating Frequency 2.400-2.4835 GHz
Bluetooth Transmitter Power < 8 dBm
2.4GHz Transmitter Power (EIRP) < 20 dBm (CE/SRRC/MIC)
< 26 dBm (FCC)
2.4GHz Transmission Distance 160 m*
100 m** * Measured under FCC standard in an unobstructed environment free of interference. ** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference. Mechanical Properties Dimensions: Approx. 128×87×87 mm (L×W×H)
Weight: Approx. 555 g (1.22 lbs) (without battery) Battery Model: NP-F550
Input: 6.3-8.4 V Dimensions: 71×38.6×21.1 mm (L×W×H) Screen 1.09-inch full-color touchscreen
Static Power Consumption 0.83 W
Operating Temperature -20° to 45° C (-4° to 113° F) (excluding battery temperature)
Motor 2.4GHz Transmitter Power (EIRP) < 20 dBm (CE/SRRC/MIC)
< 26 dBm (FCC) 2.4GHz Transmission Distance 160 m*
100 m** * Measured under FCC standard in an unobstructed environment free of interference. ** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference. Mechanical Properties Dimensions: Approx. 100×61×34 mm (L×W×H)
Weight: Approx. 123 g (0.27 lbs) Rod Diameter: 15 mm Output Gear Teeth: 30 Output Gear Module: 0.8 Performance Max Torque: 0.6 N·m (8 V)
Max Speed: 300 rpm (8 V) Power Supply Voltage 6.6-17.2 V
Stall Current 2 A, 8 V
Free Current 60 mA, 8 V
Operating Temperature -20° to 45° C (-4° to 113° F)
Output Voltage 6.6-17.2 V |
| Used Equipment Rating | Excellent |
