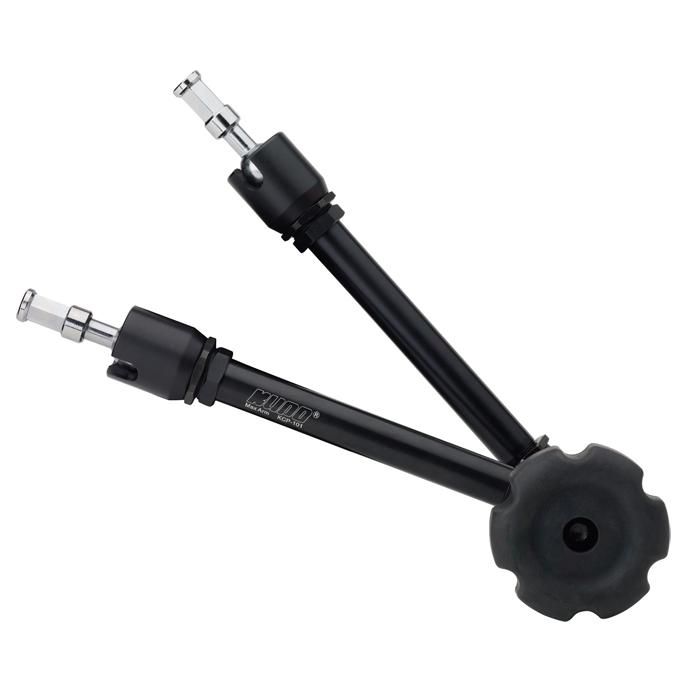

Kupo Max Arm With Hand Wheel

$95.95
In stock
SKU
KUP1064
- Supports loads of up to 8.8 lbs (4 Kg)
- Black Aluminum Finish
- 6 Milled Flat Surfaces on Each Stud
- Wheel Handle
The Max Arm is an adjustable arm that allows you to position a camera, lighting fixture or accessory in any position within seconds! The two 5/8" (16mm) studs at either end are attached to ball joints that rotate 360 degrees, plus a cut-out in the sleeve surrounding the ball allows the stud to be bent 90 degrees. One stud is tapped to receive a 3/8"-16 thread, while the other is tapped to receive a 1/4-20 thread. Each stud has six milled flat surfaces, so whatever you mount on the Max Arm will not rotate. The central elbow rotates 360 degrees for infinite adjustability. The Max Arm is equipped with user-replaceable special friction discs with anti-slip rosettes prevent unwanted movement. The large rubberized hand wheel slowly increases tension until all three joints lock at once making precise positioning a breeze.
More Information
Manufacturer Kupo
manufacturer_part_no KG100911
Barcode 6954016521308
tab_specs_dims
Length
10" (25.4cm)
Width
5.5" (13.97cm)
Height
3.12" (7.94cm)
Weight
2.45lbs (1.11kg)
Fixed Stand Adapter
Two Baby 5/8" (16mm) Studs. One tapped with 3/8"-16 and the other with 1/4"-20 female threads.

Maximum Extension (Height)
20.8" (53cm)
Maximum Load
8.82lb (4kg)
Ship Time Orders placed by 4pm ET will ship the same day. Weekends & Holidays Excluded.
Used Equipment Rating Excellent
