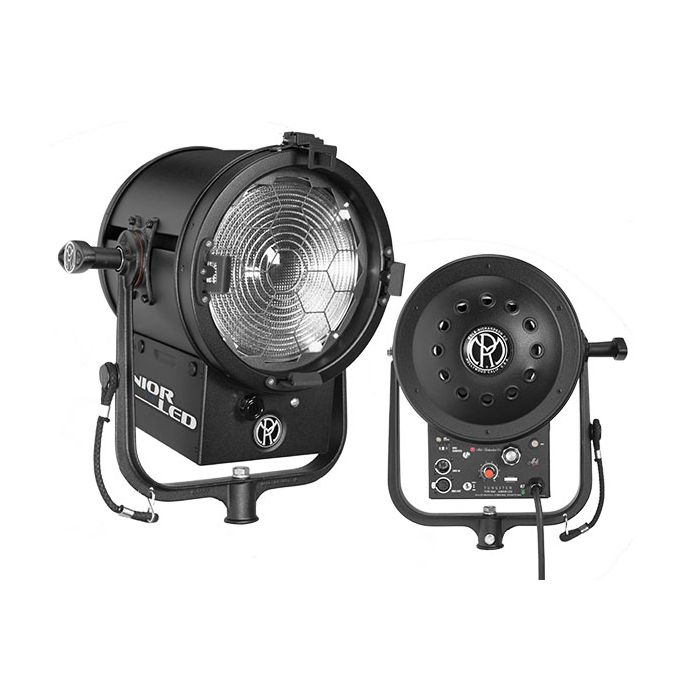

Mole 200WJunior LED Tungsten 8" Fresnel 36" Lead
$2,395.00
In stock
SKU
MLR1016
- Latest LED chip on-board technology
- Tune the visible wavelength at the nano scale
- Borosilicate glass Fresnel lens
- Tune the visible wavelength at the nano scale
- Borosilicate glass Fresnel lens
A relative newcomer to the landscape of Mole-Richardson Juniors, the 8 Junior (203mm) is a perfect blend of small size, plentiful beam spread and impressive output. Seamless integration with existing Tungsten Halogen Incandescent and drawing a maximum of 2 Amps.
If there is one product synonymous with Mole-Richardson Co., it's the iconic Motion Picture Fresnel. Built in Hollywood California since 1936, the studio Fresnel remains the back-bone of professional lighting for the film, television and broadcast industries. Relatively unchanged since its origin, the studio Fresnel rarely saw dramatic improvements...until now.
Introducing the MoleLED Fresnels. A design familiar to generations of lighting professionals is now loaded with state of the art electronics and the latest LED chip on-board technology. These revolutionary fixtures use a proprietary Quantum Dot LED developed and produced by Mole to replicate film and television 3200K Tungsten exactly.
The 200W Junior LED has an 8 in (203mm) lens. This fixture is single color Tungsten and use a borosilicate glass Fresnel lens to perform identically to an existing incandescent or HMI Fresnel fixture.
"In an industry inundated with mass produced, eco-friendly products, the MoleLED Fresnels are truly a hybrid of hand crafted quality and the most advanced solid state lighting technology available," said Larry Mole Parker, Executive Vice President. From the ground up, the MoleLED Fresnels are designed, engineered and built in the USA for professionals everywhere.
Fixture Engineering
Touting 3200K and 5600K degrees true film-friendly color, MoleLED Fresnel fixtures can easily replace existing Tungsten Halogen fixtures. In fact, as an example, the 100W TweenieLED fixture is within 10 percent of the output and performance of a standard 650W Tweenie Solarspot, but utilizes about 80 percent less power.
Built rugged, and based on over 70 years of successful Fresnel design, the MoleLED fixture is ideally suited for all set-lighting needs. Besides the obvious efficiency advantage, the MoleLED Fresnels contain a built-in universal power supply, built-in local dimming as well as on-board DMX dimming. Now, there is no need for a separate external dimming system, nor is there a worry about specific voltage requirements from location to location. In addition, this fixtures shares accessory sizes with the legacy Solarspots, so barn-doors, gel frames and speed rings remain compatible.
LED Technology
The MoleLED Fresnels are powered by a new, proprietary Mole-Richardson Co. Quantum Dot LED. Each Fresnel contains (1) Quantum Dot (QD) chip on board LED module. The benefit of QD LED technology is the ability to specifically tune the visible wavelength at the nano scale which, in this case, allows for precise adjustment of the red spectrum without impacting the overall light output of the LED.
Like the remote phosphor technology developed for the MoleLED 12-Pack, the proprietary QD LED in the Fresnels provides Tungsten light that parallels the spectral sensitivity curves needed for image capture, and the all-important visible spectrum, or what the eye sees. This is one of the many benefits single color LED's have over LED color mixing. This Patent Pending LED module represents the first time QD LED's are being used in the film, television and broadcast industries.
Test Success
Multiple camera tests were shot with the MoleLED Fresnels in order to verify the color viewed on set would translate to the color viewed on screen. This attention to detail and strict testing proved the MoleLED will mix seamlessly with any existing Tungsten Halogen light source, natural daylight, or any daylight balanced light source.
About Mole-Richardson Co.
Mole-Richardson Co. is the industry leader in the engineering and manufacturing of lighting and power distribution equipment for the film, television and broadcast industries. Founded in 1927, the company remains dedicated to interpreting technology and designing solutions for cinematographers and lighting professionals worldwide.
If there is one product synonymous with Mole-Richardson Co., it's the iconic Motion Picture Fresnel. Built in Hollywood California since 1936, the studio Fresnel remains the back-bone of professional lighting for the film, television and broadcast industries. Relatively unchanged since its origin, the studio Fresnel rarely saw dramatic improvements...until now.
Introducing the MoleLED Fresnels. A design familiar to generations of lighting professionals is now loaded with state of the art electronics and the latest LED chip on-board technology. These revolutionary fixtures use a proprietary Quantum Dot LED developed and produced by Mole to replicate film and television 3200K Tungsten exactly.
The 200W Junior LED has an 8 in (203mm) lens. This fixture is single color Tungsten and use a borosilicate glass Fresnel lens to perform identically to an existing incandescent or HMI Fresnel fixture.
"In an industry inundated with mass produced, eco-friendly products, the MoleLED Fresnels are truly a hybrid of hand crafted quality and the most advanced solid state lighting technology available," said Larry Mole Parker, Executive Vice President. From the ground up, the MoleLED Fresnels are designed, engineered and built in the USA for professionals everywhere.
Fixture Engineering
Touting 3200K and 5600K degrees true film-friendly color, MoleLED Fresnel fixtures can easily replace existing Tungsten Halogen fixtures. In fact, as an example, the 100W TweenieLED fixture is within 10 percent of the output and performance of a standard 650W Tweenie Solarspot, but utilizes about 80 percent less power.
Built rugged, and based on over 70 years of successful Fresnel design, the MoleLED fixture is ideally suited for all set-lighting needs. Besides the obvious efficiency advantage, the MoleLED Fresnels contain a built-in universal power supply, built-in local dimming as well as on-board DMX dimming. Now, there is no need for a separate external dimming system, nor is there a worry about specific voltage requirements from location to location. In addition, this fixtures shares accessory sizes with the legacy Solarspots, so barn-doors, gel frames and speed rings remain compatible.
LED Technology
The MoleLED Fresnels are powered by a new, proprietary Mole-Richardson Co. Quantum Dot LED. Each Fresnel contains (1) Quantum Dot (QD) chip on board LED module. The benefit of QD LED technology is the ability to specifically tune the visible wavelength at the nano scale which, in this case, allows for precise adjustment of the red spectrum without impacting the overall light output of the LED.
Like the remote phosphor technology developed for the MoleLED 12-Pack, the proprietary QD LED in the Fresnels provides Tungsten light that parallels the spectral sensitivity curves needed for image capture, and the all-important visible spectrum, or what the eye sees. This is one of the many benefits single color LED's have over LED color mixing. This Patent Pending LED module represents the first time QD LED's are being used in the film, television and broadcast industries.
Test Success
Multiple camera tests were shot with the MoleLED Fresnels in order to verify the color viewed on set would translate to the color viewed on screen. This attention to detail and strict testing proved the MoleLED will mix seamlessly with any existing Tungsten Halogen light source, natural daylight, or any daylight balanced light source.
About Mole-Richardson Co.
Mole-Richardson Co. is the industry leader in the engineering and manufacturing of lighting and power distribution equipment for the film, television and broadcast industries. Founded in 1927, the company remains dedicated to interpreting technology and designing solutions for cinematographers and lighting professionals worldwide.
| Manufacturer | Sandisk |
|---|---|
| manufacturer_part_no | 8941-REV |
| tab_box | Below are the items included with this product
|
| tab_specs_dims | Head Type 8941 Tungsten Rating 90-250 Volts AC, 50-60Hz, 200 Watts, 1-2 Amps Max. DMX Standby Draw less than .10 Amps Max. Light Source (1) - 200 Watt Mole-Richardson Quantum Dot LED 3200K 95CRI Tungsten Switch Thru-cord Toggle in Cable, DMX or Local Toggle in Trough Fuse 2 Amp Slow-Blow. Fuseholder in Trough Dimming Flicker Free, Direct DC Dimming Local Dimmer 100 - 0 percent (Minimal Color Shift), DMX Dimmer 100 - 0 percent (Minimal Color Shift) Control DMX512-A In and Out. Manual DMX Address Selector Beam Angle 13 to 54 degrees Variable Spot to Flood (Includes Field) Focusing Rotating Knob on Front and Back Cooling Passive-Forced Air Cable Attached 36 ft (7.6m) Type SO., 3 Conductor, Number 18 AWG with NEMA 5-15 Edison (Other plugs and wire lengths available upon request) Construction Aluminum and Steel with Interlocking Channels Yoke Cast Aluminum w/Standard 11/8 in (29mm) Pin Compliance RoHS. CE, UL, CSA IP Rating 30 Finish Textured Black Powder Epoxy Coat. (Other Colors Available) Size 12 in/305mm(d) x 14 in/356mm(w) x 205/8 in/524mm(h) Head Weight 14lbs/6.40kg (Head Only) 16lbs/7.23kg (Head with 36ft cable) Condenser 8 in (203mm) Borosilicate Glass Fresnel |
