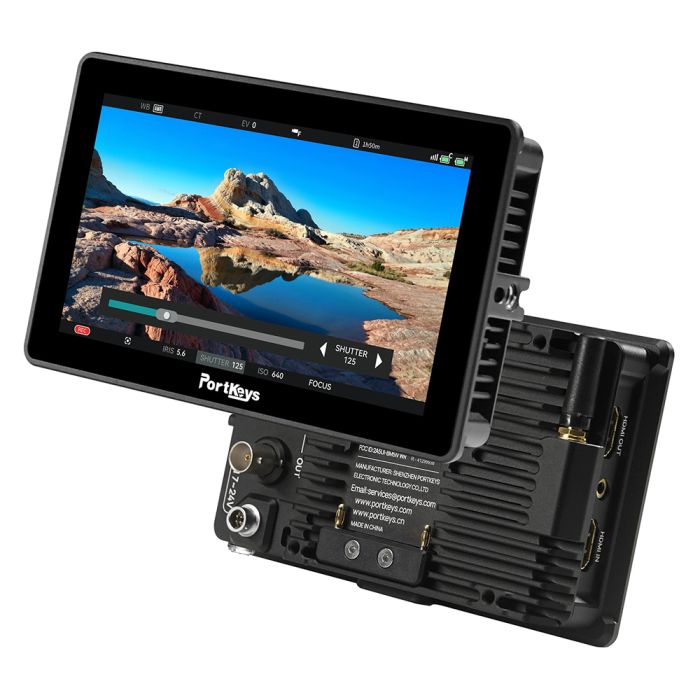

Portkeys BM5IV WR 5.5" 4K60P Monitor

$749.00

In stock

SKU

PKS1037

- 5.5-inch, 10-bit (8+2 FRC) panel
- Resolution of 1920 x 1080 and a 1000:1 contrast ratio
- Daylight-viewable with a maximum brightness of 2,000nits
- 1 x 4K60P HDMI input, 1 x 3G-SDI input, 1 x 4K60P HDMI output, 1 x 3G-SDI output with cross-conversion
- Powered by CINENORM OS, which supports up to 7 custom pages

Details

The Portkeys BM5IV WR is a lightweight, rugged 5.5-inch Wide Color Gamut on-camera monitor with 2,000nits of brightness, HDMI/SDI video input and output ports, and wired/wireless camera control capabilities.

Features:

5.5-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
Daylight-viewable with a maximum brightness of 2,000nits.
1 x 4K60P HDMI input, 1 x 3G-SDI input, 1 x 4K60P HDMI output, 1 x 3G-SDI output with cross-conversion.
Powered by CINENORM OS, which supports up to 7 custom pages.
Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color.
3D LUT monitoring and 3D LUT SDI output capabilities.
Split-screen monitoring capabilities with multiple viewing modes, including PBP, PIP, and H2V.
Factory color-calibrated, and the possibility for users to create a 3D calibration LUT with an X-Rite color probe.
Wireless camera control of ARRI, RED, SONY, Nikon, Canon, Panasonic, and Blackmagic Design cameras.
Wired camera control for Sony, Canon, Panasonic, BMD, and ZCAM E2.
TILTA Nucleus N/M wireless follow focus wired control.
Built-in Sony NP-F style battery plate.
4-pin and 2-pin LEMO 7.4V-24V power inputs for external power (D-Tap cable included).
Lightweight and rugged aluminum housing: only 358g/12.62oz.

More Information

More Information
Manufacturer	Portkeys
manufacturer_part_no	BM5IVWR
Barcode	9331924264546
Used Equipment Rating	Excellent
