RED DIGITAL CINEMA Compact EVF
$3,450.00
In stock
SKU
RED1007
- Highly flexible EVF monitoring solution
- Clear, sharp viewing experience
- Control and adjust key camera parameters
- Clear, sharp viewing experience
- Control and adjust key camera parameters

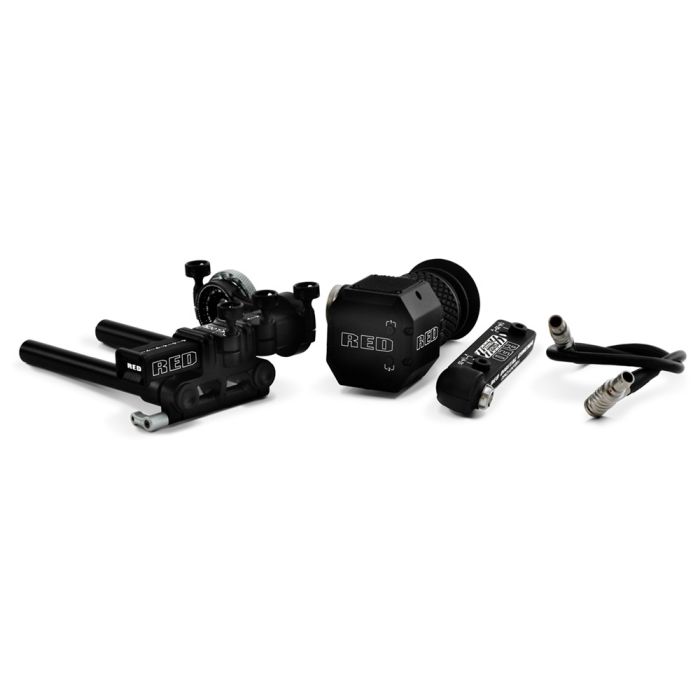

The RED® Compact EVF Pack is compatible with KOMODO-X™, V-RAPTOR®, and V-RAPTOR XL cameras. The pack includes the RED Compact EVF, a DSMC3™ Adapter A, a RED EVF Mount, and an 18” Right-to-Straight EVF cable.
This pack is ideal for users looking for a highly flexible EVF monitoring solution for their DSMC3 camera system. The EVF Mount allows you to easily position the RED Compact EVF to find your optimal operating configuration. The DSMC3 Adapter A provides a single 16-pin output to supply power, video, and data to the EVF. The RED Compact EVF gives a clear, sharp viewing experience, and allows the operator to control and adjust key camera parameters such as FPS, ISO, and White Balance, or to quickly toggle user-assignable camera features with the integrated rear buttons.
NOTE: A 15mm mounting bracket is not included. Refer to RED 15mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
This pack is ideal for users looking for a highly flexible EVF monitoring solution for their DSMC3 camera system. The EVF Mount allows you to easily position the RED Compact EVF to find your optimal operating configuration. The DSMC3 Adapter A provides a single 16-pin output to supply power, video, and data to the EVF. The RED Compact EVF gives a clear, sharp viewing experience, and allows the operator to control and adjust key camera parameters such as FPS, ISO, and White Balance, or to quickly toggle user-assignable camera features with the integrated rear buttons.
NOTE: A 15mm mounting bracket is not included. Refer to RED 15mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
| Manufacturer | RED DIGITAL CINEMA |
|---|---|
| manufacturer_part_no | 730-0030 |
| Barcode | 810016944423 |
| Klevu Image | /r/e/red1007.jpg |
| tab_box | Below are the items included with this product
|
| tab_specs_dims | CAMERA COMPATIBILITY
KOMODO-X, V-RAPTOR, V-RAPTOR XL
DIMENSIONS Height: 2.43 in. (61.7 mm)
Width: 2.46 in. (62.5 mm) Depth: 4.8 in. (121.9 mm) WEIGHT 0.8 lbs (360 g)
MATERIAL Aluminum
CAMERA MOUNTING Via integrated attachment wheel and RED EVF Mount or 1/4-20 mount points on included Mount Plate.
RESOLUTION 1920 (width) x 1080 (height)
BIT DEPTH (COLOR) 8-bit
CONTRAST RATIO > 10000:1
DISPLAY RATE 60 fps
OPTICS Fully coated optics with > 32° field of view, infinity focus and eye cup that accommodates standard 1.6” to 1.8” diameter eye cushions
DIOPTER RANGE – 2.5 to + 2.5 diopter correction range
BUTTONS Two buttons for camera control or user defined buttons
POWER CONSUMPTION 2.5 W (max)
OPERATING TEMPERATURE 32°F to 104°F (0°C to 40°C)
STORAGE TEMPERATURE –4°F to 122°F (–20°C to 50°C)
OPERATING HUMIDITY 0% to 85%, non-condensing
STORAGE HUMIDITY 0% to 85%, non-condensing |
| Used Equipment Rating | Excellent |
