RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD
$2,750.00
In stock
SKU
RED1006
- 1920 x 1200 resolution display panel
- Peak brightness of 1300 nits
- High pixel density (at 322 ppi)
- 100% DCI-P3 Color Gamut coverage
- Responsive menu system powered by SmallHD PageOS
- Peak brightness of 1300 nits
- High pixel density (at 322 ppi)
- 100% DCI-P3 Color Gamut coverage
- Responsive menu system powered by SmallHD PageOS

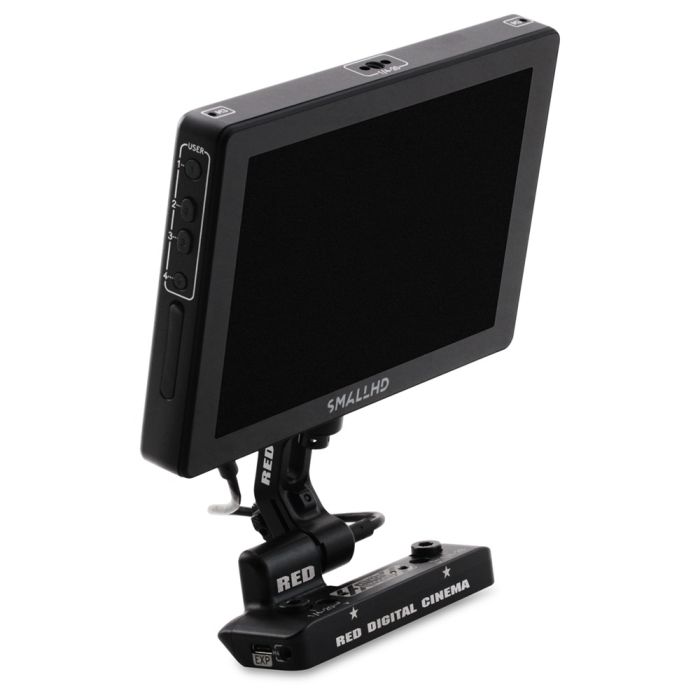

The DSMC3™ RED® Touch 7.0" LCD offers an HD viewing experience for recording and viewing footage on the V-RAPTOR® camera system. A 1920 x 1200 resolution display panel with peak brightness of 1300 nits and high pixel density (at 322 ppi), not only provides the optimal experience when viewing footage, but also features 100% DCI-P3 Color Gamut coverage for tremendous color accuracy. The monitor also features full control over the camera via the new responsive menu system powered by SmallHD PageOS, bringing features like Waveform, Vectorscope, Histogram, False Color, Color Picker, Pixel Zoom and more.
The lightweight display features a removable integrated tilt arm with the capability to rotate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.
The lightweight display features a removable integrated tilt arm with the capability to rotate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.
| Manufacturer | RED DIGITAL CINEMA |
|---|---|
| manufacturer_part_no | 730-0029-D |
| Barcode | 810016944751 |
| Klevu Image | /r/e/red1006.jpg |
| tab_box | Below are the items included with this product
|
| tab_specs_dims | CAMERA COMPATIBILITY
KOMODO-X, V-RAPTOR, V-RAPTOR XL
MONITOR DIMENSIONS Height: 4.67 in. (118.70 mm)
Width: 7.09 in. (180.10 mm) Depth: 1.13 in. (28.80 mm) ARM DIMENSIONS Height: 1.18 in. (30.00 mm)
Width: 2.40 in. (61.00 mm) Depth: .70 in. (17.50 mm) RED MONITOR INTERFACE DIMENSIONS Height: 1.67 in. (42.50 mm)
Width: 4.25 in. (108.00 mm) Depth: 1.51 in. (38.23 mm) WEIGHT Monitor approximately 1.25 lbs (568.0 g)
Arm approximately .07 lbs (30.1 g) RED Monitor Interface approximately .28 lbs (126 g) MATERIAL Aluminum Alloy
RESOLUTION 1920 x 1200
PIXEL DENSITY 322 pixels per inch (ppi)
REFRESH RATE 60 Hz
RESPONSE TIME 25 ms
CONTRAST 1250:1
BRIGHTNESS 1300 cd/m2
COLOR DEPTH 10-bit processing (8-bit panel)
COLORS 100% DCI-P3[1]
VIEWING ANGLE ± 160° all axes
DISPLAY ORIENTATION Landscape, 180° rotation
TOUCH Projected Capacitive (pCap), multi-touch
CAMERA CONNECTION Power and Communication via RMI cable
MOUNTING 15mm Rail
HOOD MOUNTING 4x M3 Mounting Points
BUTTONS 4 Buttons Function 1,2,3 & 4
POWER CONSUMPTION Max 18.3W
OPERATING TEMPERATURE 0°C to 38°C (32°F to 104°F)
STORAGE TEMPERATURE –18°C to 49°C (–0°F to 120°F)
OPERATING HUMIDITY 0% to 85%, non-condensing
STORAGE HUMIDITY 0% to 85%, non-condensing
FIRMWARE REQUIREMENT Compatible with camera firmware V1.1 or later |
| Used Equipment Rating | Excellent |
