RED DIGITAL CINEMA EVF Mount
$1,250.00
In stock
SKU
RED1024
- Lightweight 15 mm LWS rod-based EVF mounting solution
- Multi-axis telescoping design
- Multi-axis telescoping design

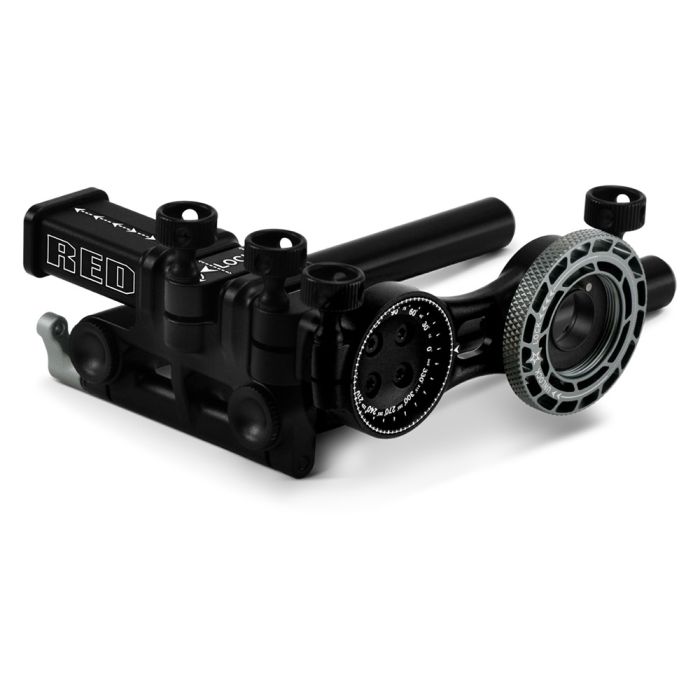

The RED® EVF Mount is a lightweight 15 mm LWS rod-based EVF mounting solution. RED designed the mount for use with the RED Compact EVF and the DSMC2® RED EVF (OLED), on DSMC3™ and DSMC2 camera systems.
The RED EVF Mount features a multi-axis telescoping design, which allows the operator to easily find the optimal position for every situation. The mount includes a quick-connect screw-on EVF clamp, laser etched distance and angle markers, machined thumb-screws for quick and easy adjustability, and support for the RED EVF Extension Arm (sold separately).
NOTES:
The 15 mm bracket is not included, refer to RED 15 mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
The RED Compact EVF and the DSMC3 Adapter A are sold separately.
The RED EVF Mount features a multi-axis telescoping design, which allows the operator to easily find the optimal position for every situation. The mount includes a quick-connect screw-on EVF clamp, laser etched distance and angle markers, machined thumb-screws for quick and easy adjustability, and support for the RED EVF Extension Arm (sold separately).
NOTES:
The 15 mm bracket is not included, refer to RED 15 mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
The RED Compact EVF and the DSMC3 Adapter A are sold separately.
| Manufacturer | RED DIGITAL CINEMA |
|---|---|
| manufacturer_part_no | 790-0753 |
| Barcode | 810016944430 |
| Klevu Image | /r/e/red1024.jpg |
| tab_box | Below are the items included with this product
|
| tab_specs_dims | CAMERA COMPATIBILITY DSMC2, RANGER, KOMODO-X, V-RAPTOR, V-RAPTOR XL
DIMENSIONS (excluding length of 6" rods) Height: 4.68 in. (134.9 mm)
Width: 5.31 in. (62.5 mm) Depth: 2.65 in. (67.3 mm) WEIGHT 0.86 lbs (390.1 g)
MATERIAL Aluminum
CAMERA MOUNTING Via 15mm bracket. Refer to RED® 15mm Top Handle Bracket and V-RAPTOR® XL Top 15mm LWS Rod Support Bracket for DSMC3 mounting options.
EVF MOUNTING Via attachment wheel
OPERATING TEMPERATURE 32°F to 104°F (0°C to 40°C)
STORAGE TEMPERATURE –4°F to 122°F (–20°C to 50°C)
OPERATING HUMIDITY 0% to 85%, non-condensing
STORAGE HUMIDITY 0% to 85%, non-condensing |
| Used Equipment Rating | Excellent |
