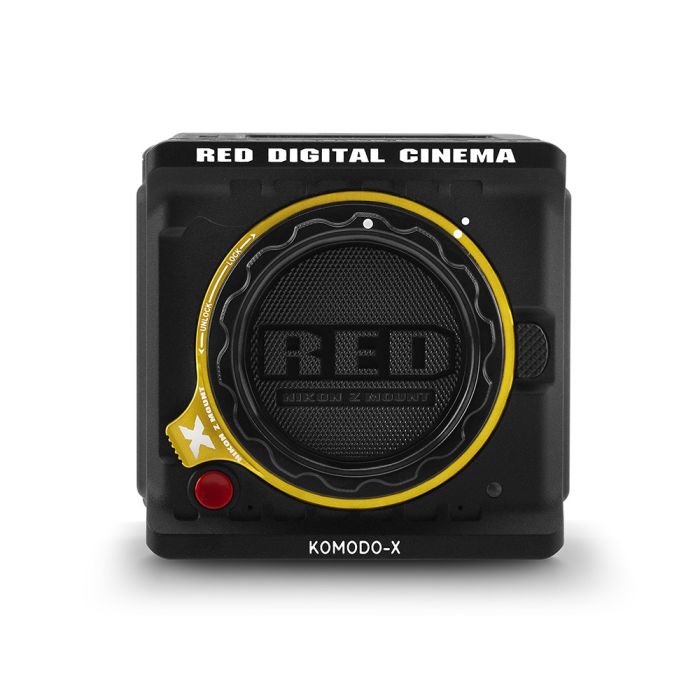

RED DIGITAL CINEMA KOMODO-X Z Mount Cinema Camera
$6,995.00
In stock
SKU
RED1037
- 19.9MP Super 35mm Global Shutter CMOS Sensor
- Compact KOMODO Line Design
- Locking Nikon Z Lens Mount
- Up to 6K80p & 4K120p Video
- 12G-SDI, USB-C, 5-Pin Audio Ports
- Compact KOMODO Line Design
- Locking Nikon Z Lens Mount
- Up to 6K80p & 4K120p Video
- 12G-SDI, USB-C, 5-Pin Audio Ports
KOMODO-X
Next evolution of the KOMODO line with all-new 6K global shutter sensor and enhanced features
NEXT EVOLUTION
FEATURES & BENEFITS
The next evolution of KOMODO features all-new sensor technology that multiplies frame rate and dynamic range performance within a new advanced platform and all-new Z Mount option for ultimate lens flexibility.
NEXT GENERATION GLOBAL SHUTTER SENSOR
KOMODO-X features a completely overhauled sensor architecture, with updated pixel design and improvements in both detail and color in shadows.
IMPROVED BODY DESIGN
A robust locking lens mount, with professional Micro V-Lock battery interface and all-new assignable tactile buttons.
6K AT 80 FPS & 4K AT 120 FPS
KOMODO-X achieves 80 fps in 6K and 120 fps in 4K, thanks to the new sensor design and processing, as well as support for CFexpress.
ADVANCED PLATFORM
Expanded I/O, including updated monitoring capabilities with support for DSMC3 Touch LCD, built-in USB Type-C, and newly engineered audio hardware, including locking +48V audio connector with improved preamp.
PRODUCTION READY
KOMODO-X carries on the legacy of a shockingly small form factor, but now with more advanced I/O options, allowing for more professional monitoring, cabling and powering, as well as expanded remote capabilities like RED CONNECT.
I/O Array
EXPANDED I/O ARRAY
The enhanced KOMODO-X platform advances capabilities for monitoring, audio, and Livestream connections.
The flexible and powerful lens mount system now features new locking mechanism for additional rigidity and peace of mind.
CF EXPRESS
KOMODO-X USES standardized and high-performing CFexpress Type B Media to ensure the best reliability and performance possible.
Adopting the advanced V-RAPTOR battery and DC-IN interface allowing for efficient and high-capacity battery options while maintaining small form factor.
The Integrated USB Type-C interface expands remote capabilities and usability of the KOMODO-X with minimal latency.
INTERFACE EXPANSION
KOMODO-X Offers robust and powerful systems, with USB Type-C interfaces, ethernet offload capabilities, Timecode and Genlock compatibility and more.
TOUCH SCREEN DISPLAY
Integrated onboard LCD provides comprehensive control and image preview for smallest possible configuration.
DSMC3 TOUCH MONITOR SUPPORT
Monitor and control the camera using the direct attach 7” DSMC3 Touch LCD, leaving the SDI available for wireless transmitters or other monitors.
TACTILE BUTTONS
On-Camera tactile buttons including all-new record buttons with assignable multifunctional control.
FORM FACTOR
ADVANCED CONNECTIVITY
Unlock the capabilities of the KOMODO-X system through multiple next generation remote connectivity options, including the RED Control Pro app and the all-new RED Connect technology.
Next evolution of the KOMODO line with all-new 6K global shutter sensor and enhanced features
NEXT EVOLUTION
FEATURES & BENEFITS
The next evolution of KOMODO features all-new sensor technology that multiplies frame rate and dynamic range performance within a new advanced platform and all-new Z Mount option for ultimate lens flexibility.
NEXT GENERATION GLOBAL SHUTTER SENSOR
KOMODO-X features a completely overhauled sensor architecture, with updated pixel design and improvements in both detail and color in shadows.
IMPROVED BODY DESIGN
A robust locking lens mount, with professional Micro V-Lock battery interface and all-new assignable tactile buttons.
6K AT 80 FPS & 4K AT 120 FPS
KOMODO-X achieves 80 fps in 6K and 120 fps in 4K, thanks to the new sensor design and processing, as well as support for CFexpress.
ADVANCED PLATFORM
Expanded I/O, including updated monitoring capabilities with support for DSMC3 Touch LCD, built-in USB Type-C, and newly engineered audio hardware, including locking +48V audio connector with improved preamp.
PRODUCTION READY
KOMODO-X carries on the legacy of a shockingly small form factor, but now with more advanced I/O options, allowing for more professional monitoring, cabling and powering, as well as expanded remote capabilities like RED CONNECT.
I/O Array
EXPANDED I/O ARRAY
The enhanced KOMODO-X platform advances capabilities for monitoring, audio, and Livestream connections.
- Full sized 1B DC-IN connector
- Professional level audio over Locking 5-Pin connector
- Native USB Type-C connection
- 12G SDI for up to 4K 60P output
- 1080p IP Livestream for web and in-app monitoring
The flexible and powerful lens mount system now features new locking mechanism for additional rigidity and peace of mind.
- Rugged and durable design built to support large array of lenses and adapters
- Compatible with RED PL adapters
CF EXPRESS
KOMODO-X USES standardized and high-performing CFexpress Type B Media to ensure the best reliability and performance possible.
- Higher Capacities for longer run times
- Up to 17 hours record time with 4TB CFexpress card
- 3x Faster offload times than CFast Media
Adopting the advanced V-RAPTOR battery and DC-IN interface allowing for efficient and high-capacity battery options while maintaining small form factor.
- Compatibility with new REDVOLT NANO-V batteries
- Features rear M4 mounting screws for additional 3rd party battery flexibility
- Share batteries across V-RAPTOR and KOMODO-X bodies
The Integrated USB Type-C interface expands remote capabilities and usability of the KOMODO-X with minimal latency.
- 5Gbps network control and offload with cloud connectivity
- App-based multi-cam control
- Upload and download via FTPS
- 1080p Livestream capability
- Compatibility with RED Connect
- Compatibility with RED Control and RED Control Pro
INTERFACE EXPANSION
KOMODO-X Offers robust and powerful systems, with USB Type-C interfaces, ethernet offload capabilities, Timecode and Genlock compatibility and more.
TOUCH SCREEN DISPLAY
Integrated onboard LCD provides comprehensive control and image preview for smallest possible configuration.
DSMC3 TOUCH MONITOR SUPPORT
Monitor and control the camera using the direct attach 7” DSMC3 Touch LCD, leaving the SDI available for wireless transmitters or other monitors.
TACTILE BUTTONS
On-Camera tactile buttons including all-new record buttons with assignable multifunctional control.
FORM FACTOR
- 4" x 4" x 5" aluminum alloy body weighing approx. 2.62 lbs
- Locking Z or RF Lens mount for additional rigidity and featuring updated phase-detect auto-focus
- Support for DSMC3 Touch LCD and featuring on-camera assignable buttons
- Compatibility with fast CFexpress Type B media
- Flexible power including native Micro V-Lock support and DC-IN capability
ADVANCED CONNECTIVITY
Unlock the capabilities of the KOMODO-X system through multiple next generation remote connectivity options, including the RED Control Pro app and the all-new RED Connect technology.
| Manufacturer | RED DIGITAL CINEMA |
|---|---|
| manufacturer_part_no | 710-0420 |
| Barcode | 810016945130 |
| Klevu Image | /r/e/red1037.jpg |
| tab_box | Below are the items included with this product
|
| tab_specs_dims | SENSOR TYPE KOMODO-X 19.9MP Super 35mm Global Shutter CMOS
EFFECTIVE PIXELS 6144 x 3240
SENSOR SIZE 27.03 mm x 14.26 mm (Diagonal: 30.56mm)
DYNAMIC RANGE 16.5+ stops
MOUNT TYPE Integrated locking Nikon Z mount with electronic communication
Supports /i PL lenses with RED Z to PL Adapters Supports Nikon FTZ II Adapter with communication and other adapters based on the Nikon Z mount MAX DATA RATES Up to 560 MB/s using RED branded or other qualified CFexpress media cards[1]
REDCODE® RAW MAX FRAME RATES 80 fps at 6K 17:9 (6144 x 3240)
96 fps at 5K 17:9 (5120 x 2700)) 120 fps at 4K 17:9 (4096 x 2160) 240 fps at 2K 17:9 (2048 x 1080) PLAYBACK FRAME RATES (PROJECT TIME BASE) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
BEST AVAILABLE REDCODE® SETTINGS REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120 fps REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240 fps REDCODE® RAW ACQUISITION FORMATS 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9. 1:1, and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700) and 16:9 4K 17:9 (4096 x 2160) and 16:9 2K 17:9 (2048 x 1080) APPLE PRORES Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps
CONSTRUCTION Aluminum Alloy
DIMENSIONS 129.37 x 101.26 x 95.26 mm / 5.1 x 4 x 3.8 in (LxWxH, largest fixed dims.)
WEIGHT 2.62lbs (without body cap and CFexpress card)
MEDIA TYPE CFexpress Type B
BATTERY TYPE Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
DC POWER INPUT 11-17V via 6-pin DC-IN
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY 0% to 85% non-condensing
COLOR MANAGEMENT Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs Supports import and adjustment of CDLs AUDIO Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz AUTOFOCUS Phase Detect and Contrast
MONITOR OPTIONS Proprietary Top Accessory Port for Monitoring and Control
Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio ADDITIONAL I/O Tri-Level Genlock Input via 9-Pin EXT
LTC Timecode Input via 9-Pin EXT RS232 CTRL (using RCP2) via 9-Pin EXT IP CONNECTED Wi-Fi (2.4GHz/5GHz) for camera control, video preview, and media offloading
Ethernet via USB Type-C for camera control, video preview, and media offloading MJPEG 1080p live stream accessible through Wi-Fi and USB-C. PTP for frame level synchronization R3D live broadcasting available with RED Connect License and 5Gbps Ethernet Adapter RED CONTROL & RED CONTROL PRO Access full camera controls and live preview from iOS or Android devices
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location. Standard app available from the Apple App Store and Google Play Store. RED Control Pro available via Apple App store only and requires additional purchase. RED Control works wirelessly or wired via USB-C |
| Used Equipment Rating | Excellent |
