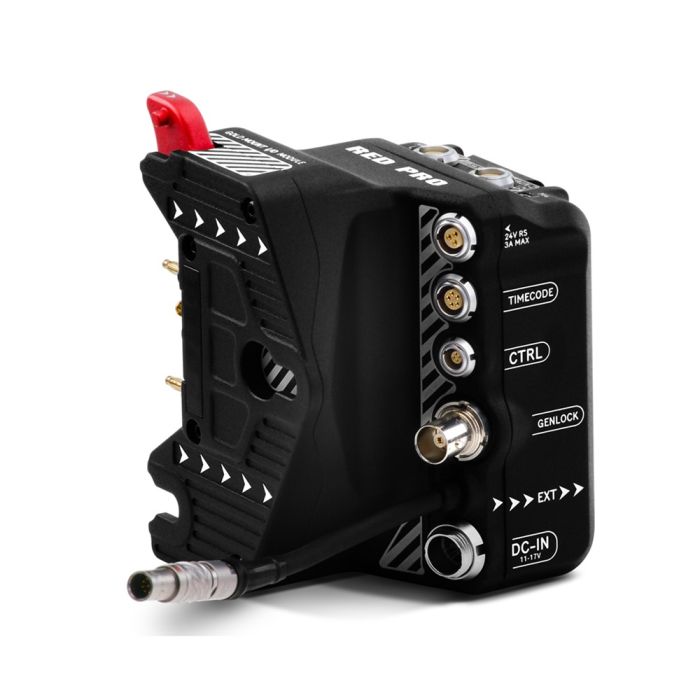

RED DIGITAL CINEMA Pro Gold Mount I/O Module

The RED® Pro Gold Mount I/O Module offers a variety of input / output connections, and it also includes an industry standard V-Lock mount to power your KOMODO-X™ with higher capacity batteries. This Gold Mount module mounts directly to the KOMODO-X’s rear Micro V-Lock plate and 9-Pin EXT Port, and it offers connections for the following:

• DC Power Input (DC-IN)
• Genlock (BNC)
• CTRL (4-Pin)
• Timecode (5-Pin)
• 1x 3-Pin 24-volt (regulated) R/S port (3A max)
• 2x 2-Pin 12-volt (unregulated) AUX ports (3A combined max)

The module also includes an operator-side screen which displays key power voltage and battery percentage information (with compatible batteries) along with a power switch to cut power to the module when you want to leave a battery on the module for long durations.

NOTES:
It is recommended to use 12A Batteries such a the REDVOLT® MICRO-G or REDVOLT® XL-G when using all AUX outputs simultaneously.
RED Pro I/O Module was designed in partnership with Core SWX.
