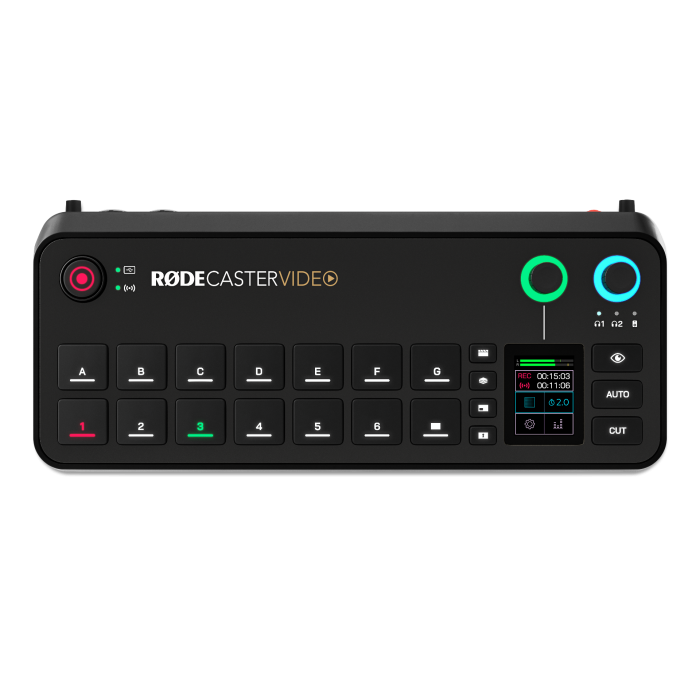

RodeCaster Video and Audio Production Console
$1,199.00
In stock
SKU
RDE1226
- Live Switcher with Built-In Audio Mixing
- 4x HDMI Inputs with 1080p 60FPS Output
- 4:2:2 8-Bit Color Space
- Stream to major platforms via Wi-Fi or Ethernet
- 4x HDMI Inputs with 1080p 60FPS Output
- 4:2:2 8-Bit Color Space
- Stream to major platforms via Wi-Fi or Ethernet
The RØDECaster Video is a revolutionary all-in-one video and audio production console that provides intuitive control over every element of your content. Combining powerful video switching, recording and production capabilities with a fully integrated professional audio mixer, it offers a seamless way to streamline and supercharge your workflow for studio productions, video podcasts and interviews, and stream live events with broadcast quality.
- Switch between up to six video sources and seven fully customisable scenes at the press of a button
- High-performance octa-core CPU video and audio processor
- Four full HD (1080p) HDMI inputs with auto frame rate conversion and two configurable HDMI outputs for viewing program, preview and multiview
- Two flexible USB-C ports for connecting webcams and RØDE USB audio devices to use as additional video and audio sources
- Two studio-grade Neutrik® combo jacks with ultra-low-noise, high-gain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source
- Dual internal wireless receivers for connecting RØDE Series IV wireless microphones
- Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
- 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment
- Ability to create seven complex scenes with multiple layers of video, media and graphics, which can be saved and triggered at the touch of a button
- Automatic chroma keying for effortlessly replacing backgrounds with media or live video inputs
- Media playback, graphic overlays, keying, transitions and multi-source scene creation all accessible from the front panel
- Innovative “Inspect” feature for quick-and-easy preview and configuration of any input or scene
- Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
- Stream directly to all major platforms via Wi-Fi or Ethernet and record directly to an external USB storage device, including isolated (ISO) recording for complete post- editing flexibility
- Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RØDE Central
- Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia
| Manufacturer | Rode |
|---|---|
| manufacturer_part_no | RCV |
| Barcode | 698813014507 |
| tab_box | Below are the items included with this product
|
| tab_specs_dims | Video Input Feeds
6 simultaneous
HDMI Inputs
4 type-A (HDMI 1.4b)
USB (UVC) Inputs
2 multi-function USB-C for UVC video
HDMI Outputs
2 configurable – preview, program, multiview
Video Input Frame Rates
1920x1080p:
23.97, 24, 25, 29.97, 30, 50, 59.94, 60 (HDMI only) 1920x1080i: 25, 29.97, 30 Video Output Frame Rates
1920x1080p:
24, 25, 30, 50, 60 Video Streaming Standards
1920x1080p:
23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Video Engine Colour Space / Bit Depth
4:4:4 RGB / 8-bit
HDMI Input Colour Space / Bit Depth
4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
USB Input Colour Space
4:2:2 YUV, 4:2:0 YUV (NV12)
HDMI Output Colour Space / Bit Depth
4:4:4 RGB, 4:4:4 YUV / 8-bit
USB Output Colour Space / Bit Depth
4:2:2 YUV / 8-bit
Format and Frame Rate Converters
On all HDMI and USB inputs
Analog Audio Inputs
2 combo jacks
Audio Output
2x headphone (1/4-inch)
2x balanced line outputs (1/4-inch, L/R) Weight
1257 grams
Dimensions
132.5x305.9x61.4mm
Power Supply
60W, 20V 3A USB-C
|
