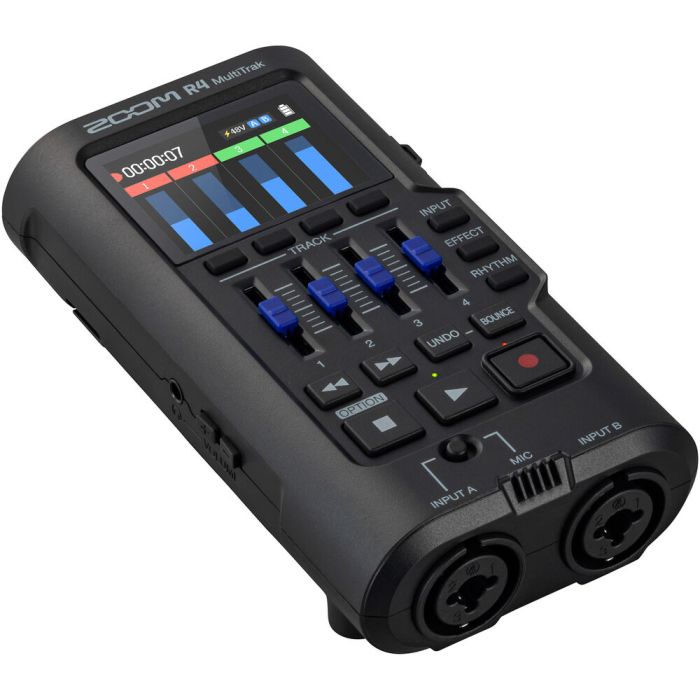

Zoom R4 MultiTrack Recorder
$199.99
In stock
SKU
ZOO1086
- 4 Tracks of Recording + Dedicated Bounce Track
- 2 XLR/TS combo inputs
- Built-in Omnidirectional Microphone
- Dual AD circuitry with 32-bit float recording technology
- Color LCD Display
- 2 XLR/TS combo inputs
- Built-in Omnidirectional Microphone
- Dual AD circuitry with 32-bit float recording technology
- Color LCD Display
Designed By Musicians
All of our engineers are musicians and they designed the R4 to empower musicians to explore big ideas. With a unique dedicated ‘bounce track’ and 32-bit float recording, the R4 is perfect for capturing your most ambitious compositions.
Record. Bounce. Repeat.
With the R4, you can record up to four tracks, mix and then bounce them to the dedicated ‘bounce track.’ This lets you free up additional tracks to keep adding layers. You can choose to do a ‘quick’ bounce or mix and bounce in real time. The R4 also allows you to ‘undo’ your last bounce, if you’re not satisfied with the results.
32-Bit Float Recording
The R4 captures perfect audio with every take, without the need to set gain.
Track Effects
Each track features a 3-band EQ, pan, echo, and reverb to refine your mix.
Input Effects
Apply effects to input A such as amp simulations, delays, distortions and more.
Built-In Microphone
The R4 features a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording.
Much More Than A Metronome
The R4 has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more.
Every Take Is Saved
Tracks that you record are automatically saved individually, even after they have been bounced.
32-Bit Float Audio Interface
The R4 is also a powerful 2-in/ 2-out USB audio interface with 32-bit float technology. Connect it to either your computer or smartphone.
Control and Create
With a fader for each track and dedicated hardware buttons for the most used functions, you won’t need to menu dive to record your music.
Powered For Your Ideas
The R4 can be powered by 4 AA Batteries, or through its USB-C port.
All of our engineers are musicians and they designed the R4 to empower musicians to explore big ideas. With a unique dedicated ‘bounce track’ and 32-bit float recording, the R4 is perfect for capturing your most ambitious compositions.
Record. Bounce. Repeat.
With the R4, you can record up to four tracks, mix and then bounce them to the dedicated ‘bounce track.’ This lets you free up additional tracks to keep adding layers. You can choose to do a ‘quick’ bounce or mix and bounce in real time. The R4 also allows you to ‘undo’ your last bounce, if you’re not satisfied with the results.
32-Bit Float Recording
The R4 captures perfect audio with every take, without the need to set gain.
Track Effects
Each track features a 3-band EQ, pan, echo, and reverb to refine your mix.
Input Effects
Apply effects to input A such as amp simulations, delays, distortions and more.
Built-In Microphone
The R4 features a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording.
Much More Than A Metronome
The R4 has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more.
Every Take Is Saved
Tracks that you record are automatically saved individually, even after they have been bounced.
32-Bit Float Audio Interface
The R4 is also a powerful 2-in/ 2-out USB audio interface with 32-bit float technology. Connect it to either your computer or smartphone.
Control and Create
With a fader for each track and dedicated hardware buttons for the most used functions, you won’t need to menu dive to record your music.
Powered For Your Ideas
The R4 can be powered by 4 AA Batteries, or through its USB-C port.
| Manufacturer | Zoom |
|---|---|
| manufacturer_part_no | R4 |
| tab_specs_dims | INPUTS / OUTPUTS INPUTS Built-in mic (mono) 1
XLR/TS inputs (mono) 2
OUTPUT Headphones 1
Inputs XLR/TRS INPUTS Connectors 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT）
Input gain No adjustment required (dual A/D converter circuit used)
Input impedance XLR: 2.3 kΩ
TS: 1 MΩ Maximum input level XLR: +4 dBu
TS: +10 dBu Phantom power +48 V (switchable separately for INPUTS A and B)
Equivalent input noise XLR: −120 dBu or less (IHF-A)
TS: −107 dBu or less (IHF-A) Frequency response XLR: -0.5 /+0.0 dB : 20 Hz - 20 kHz
TS: -0.2 /+0.0 dB : 20 Hz - 20 kHz BUILT-IN MIC INPUT Directionality Omnidirectional
Input gain No adjustment required (dual A/D converter circuit used)
Maximum sound pressure input 115 dB SPL
Output HEADPHONES Connector 1 stereo 3.5mm mini jack
Output impedance 10 Ω
Maximum output level 20 mW + 20 mW (into 32Ω load)
Recorder Maximum simultaneous recording tracks 2
Recording format WAV: 48kHz, 32-bit float, mono
Recording media Cards compatible with microSDHC specifications 4 GB – 32 GB
Cards compatible with microSDXC specifications 64 GB – 1 TB Display 2" full-color LCD (240 × 320)
USB CONNECTOR USB Type-C
Note: Use a USB cable that supports data transfer. USB bus power is supported. AUDIO INTERFACE FUNCTION Class USB 2.0 High Speed
Sampling frequency 48 kHz
Bit rate 24-bit/32-bit float
Input / output channels 2 in/2 out
MASS STORAGE FUNCTION USB2.0 High Speed
Power supply Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)
AC adapter: ZOOM AD-17 (5V/1.0A) * USB bus power is supported. Estimated continuous operation time using batteries Alkaline batteries: about 7 hours
NiMH batteries (1900 mAh): about 6 hours Lithium batteries: about 14 hours * Use conditions: Recording 1 track, playing 1 track, phantom power off, headphones into 32Ω load, power saving on * The above values are approximate. * Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. Power consumption 5 W
External dimensions 74 mm (W) × 138 mm (D) × 36 mm (H)
Weight (including batteries) 287 g
Note: 0 dBu = 0.775 Vrms |
| Used Equipment Rating | Excellent |
